Complete Line Components
Conveyor Pulleys, H Frames and System Accessories
Conveyor reliability depends on component interfaces. A pulley must match belt tension, lagging, shaft, bearings, hubs, structure, and drive. An H frame must match belt width, idler geometry, spacing, load, floor, and fastening.
The supplied catalog covers pulley, cleaner, belt, chute, roller stop, bracket, anchor bolt, coupling, backstop, take-up, motorized pulley, tension device, switch, fastener, clamp, and related families.
Conveyor drive pulley assemblies prepared in a workshop
/images/conveyor-pulleys.jpg
Pulleys
Drive to Take-Up
Drive, bend, tail, take-up, snub, wing, and lagged options
Structure
H Frames
Width, trough, spacing, load, and floor interface
Cleaning
Multi-Stage
Primary, secondary, return, and specialty cleaners
Protection
By Scope
Guards, pull cords, switches, and sensors
Pulley Replacement Data
Send pulley function, shell diameter, face width, lagging, shaft, hub, bearing housings, drive connection, belt tension, belt width, speed, wrap angle, drawings, photos, and failure details.
- Drive and head pulley
- Tail and bend pulley
- Take-up and snub pulley
- Wing pulley
- Lagging by duty
- Shaft, hub, bearing, and coupling

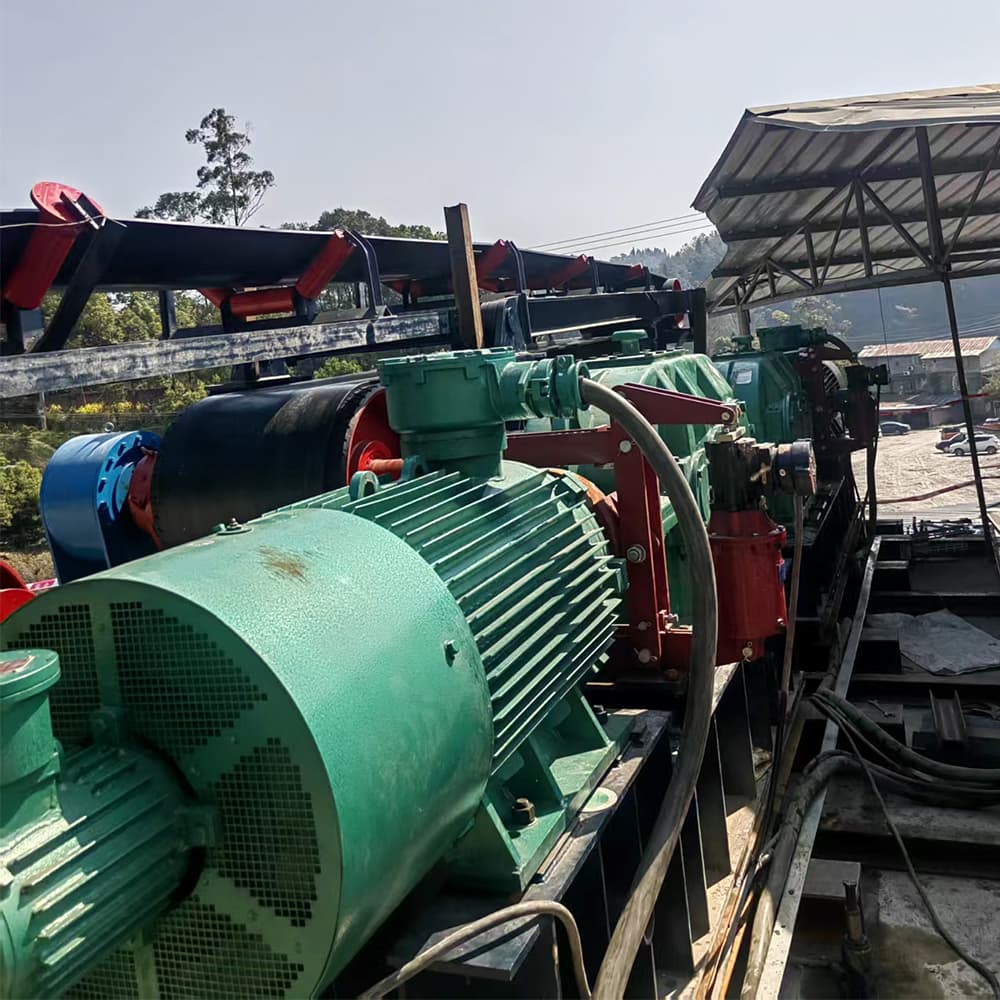

Conveyor parts used to scope an accessory package
/images/conveyor-components.jpg
Frames, Cleaners, Chutes, and Protection
Confirm the belt line, idler geometry, support, loading zone, material trajectory, maintenance access, guard clearance, cable route, and control interface.
Comparison Table
Accessory Package Scope
Use the current drawing or measured sample for replacements.
| Family | Typical items | Data needed |
|---|---|---|
| Pulleys | Drive, bend, tail, take-up, snub, wing | Diameter, face, shaft, hub, bearing, lagging, load |
| Frames | H frame, bracket, support, walkway | Belt width, trough, spacing, load, interface |
| Cleaning | Primary, secondary, return, plow | Belt, material, speed, mounting, discharge |
| Transfer | Chute, skirt, impact bed, guide | Material path, flow, drop, sealing, access |
| Protection | Pull cord, misalignment, speed, level switch | Voltage, control logic, environment, standard |
Frequently Asked Questions
Short answers to the commercial and technical questions buyers usually ask before they compare suppliers.
What information is needed for a conveyor quotation?
Send the material, bulk density, lump size, capacity, horizontal and lift distances, route profile, loading points, discharge arrangement, duty hours, power supply, quantity, destination, and required documents. A route drawing is especially useful.
Can the conveyor be supplied as a complete system?
Yes. The quotation can cover the structure, belt, idlers, pulleys, drive, take-up, cleaners, chutes, guards, controls, spare parts, documentation, inspection, packing, and export coordination. The final scope is listed line by line.
Are the values on this website final design values?
Published tables are preliminary references from the supplied product files. Final capacity, speed, power, belt rating, pulley size, braking, take-up, structure, and protection devices are confirmed against the selected model and project conditions.
Can Zhongmei quote replacement parts for an existing conveyor?
Yes. Send the current model, drawings, nameplate photos, dimensions, shaft and bearing details, belt specification, operating problem, and quantity. A sample or measured drawing may be needed for non-standard parts.
Need a Quote for Conveyor Accessories?
Send the exact model if known, mine conditions, quantity, destination, preferred trade term, and document requirements. We will reply with the open technical questions and next steps.
